| Place of Origin: | China |
| পরিচিতিমুলক নাম: | IRONMAN |
| সাক্ষ্যদান: | CE; FCC; ISO9001 |
| Model Number: | IM.S101 |
Product Overview

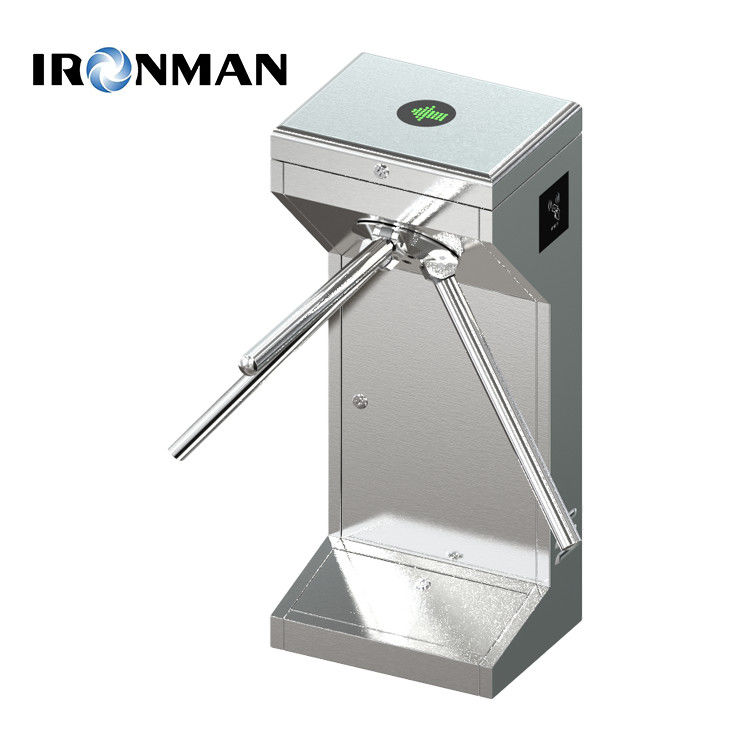

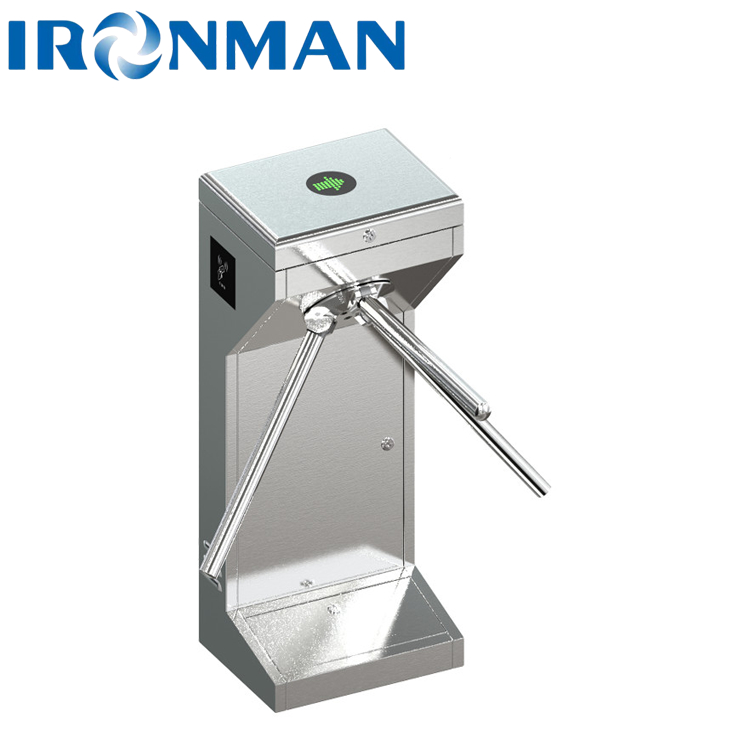

The Tripod Barrier Gate is a premium access control solution designed to enhance security and manage pedestrian flow efficiently in various environments. Crafted with high-quality stainless steel, this gate combines robust construction with sleek design, offering reliable performance and aesthetic appeal.
Key Features
1.Sturdy Structure
Constructed with high-quality stainless steel, the turnstile offers exceptional durability and resistance to corrosion, ensuring long-term reliable operation even in high-traffic areas.
2.Intelligent Access Control
3.Smooth and Efficient Passage
specification
| Dimensions | length 420* width 330* height 980mm |
| Material | 304 stainless steel material |
| Power Supply Voltage | AC220V±10% |
| Rrelative Humidity | relative humidity ≤95% |
| Arm Length | 500mm |
| Channel width | 550mm |
| Traffic Speed | ≤35 people/minute |
| Passing Direction | two-way (optional) |
| Working Environment | indoor, outdoor |
| Functional Parameters | Alarm Function | It has an audible and visual alarm function. |
| Anti - interference | It can effectively prevent the gate from malfunctioning due to external factors such as electromagnetic interference. | |
| Passage Mode Setting | One - way passage, two - way passage, free passage , etc. can be set through the buttons on the main control board. | |
| Anti - tailgating | It prevents an excessive number of unauthorized people from passing through at one time. | |
| Anti - pinching Function | When the gate is closing, it will stop closing upon detecting an anti - pinching signal. | |
| Automatic Reset | After the gate is opened, if the user fails to pass within the specified time, the system will automatically cancel the user’s current passage permission. The default time is 10 seconds, and it can be set through a switch. | |
| Access Control | Multiple biometric devices can be connected to the external ports. | |
| Power - off Gate Opening | The gate will open when the power is off. | |
| Fault Detection | The control board supports fault type detection to assist in analyzing the cause of the fault and handling abnormal faults. | |
| Passage Indication | There are passage status indicator lights, and an alarm function can be set for exceeding the stay time in the passage. |
